Tube Fillers

Tube fillers are manufactured by IWK Germany, which are widely applied to pharmaceutical, food, daily necessities, etc. To fulfill various packing requirements, IWK lauched 3 different speeds to meet different packing requirements. Including:

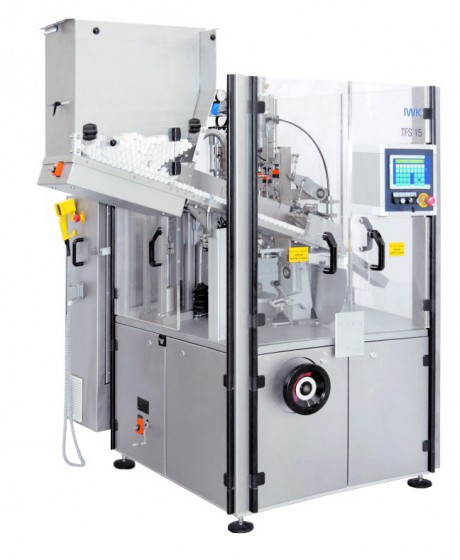

    <1> LOW SPEED – FP 10, TFS15

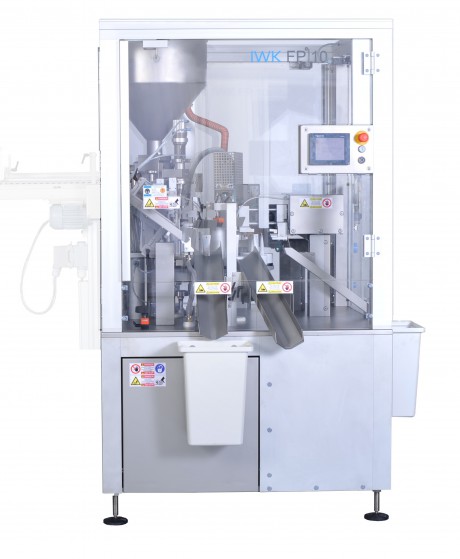

This tube filling machine in low speed range “FP 10″ is the successor of the top seller TFS 10 model which has several hundred installations worldwide. The FP 10 impresses with latest servo technology and its user-friendly adjustability via touchscreen.

Benefits:

• Short changeover times due to quick acting couplings
• Constant high-quality tube fold and tube seal quality
• No mechanical drives in the filling area to prevent product contamination
• Smooth surfaces for easy machine cleaning
• Minimum maintenance due to optimal mechanical machine components
• Best accessibility to wear & tear parts which have been kept to a minimum

Technical Data:

Model	FP10	TFS15
Max. output (tubes/min)	70	90
Working stations	10	10
Tube diameter (mm)	10-52	10-60
Total tube length (mm)	60-250	60-230
Dosing volume (ml)	1,5-300	1,5-400

APPLICATIONS

Products:

Toothpaste, adhesive cream for dentures, ointment, cream, gel, shampoo, hair-dye, adhesives, paint, silicon, ketchup, mayonnaise, mustard, margarine.

Tube materials:

Aluminium, Alu-laminate, PE, PE-laminate, Koex

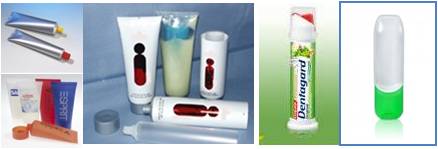

Tube forms:

Cylindrical (with EURO-hole, curved seal) oval, conical, dispenser (dispenser, inserting of pistons) Mascara pencils, cartouches, jars, tottles (capping)

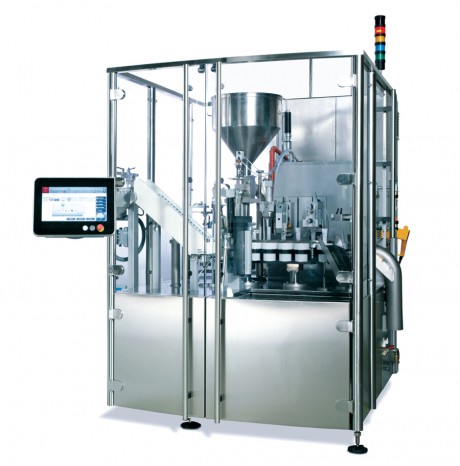

<2> Medium SPEED – FP Series

Efficient Tube Filling and Sealing Platform
Flexibility, performance and ergonomics were the key development criteria when it came to the new FP tube filling machine series. Like all of the machines, this new tube filler generation ensures technical precision, features modern control technologies as well as a high level of efficiency.

Benefits:
* Proven in the field for decades
* Excellent accessibility from all sides
* Maximum process reliability by use of servo  technology
* Flexible positioning of working stations to fit your floor space requirements
* Robust, high accurate transport system with  motorized height adjustment
* No possibility to stretch the transport chain
* Accurate positioning of the tubes in the working stations

Technical Data:

Model FP	18-1	34-1	34-2	46-2	46-3	64-3
Max. output (tubes/min)	120	120	220	220	300	300
No. of tube holders	18	34	34	46	46	64
No. of filling heads	1	1	2	2	3	3

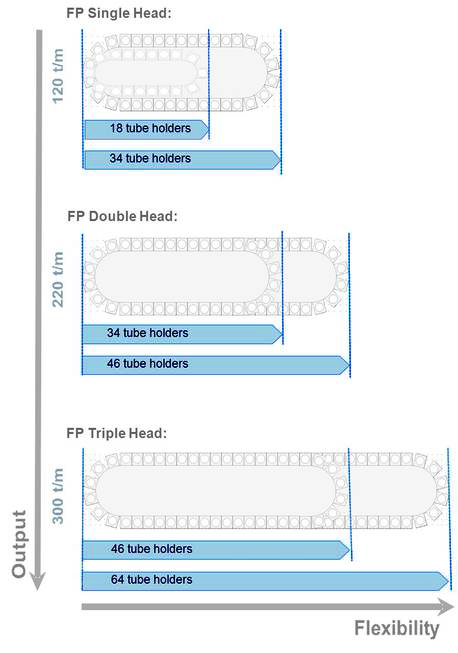

Platform Overview:

APPLICATIONS
Products:
Toothpaste, adhesive cream for dentures, ointment, cream, gel, shampoo, hair-dye, conditioner, adhesives, paint, silicon, ketchup, mayonnaise, mustard, margarine.

Tube materials:
Aluminum, Alu-laminate, PE, PE-laminate, Koex

Tube forms:
Cylindrical (with EURO-hole, curved seal) oval, conical, dispenser (dispenser, inserting of pistons) Mascara pencils, cartouches, jars, tottles (capping).

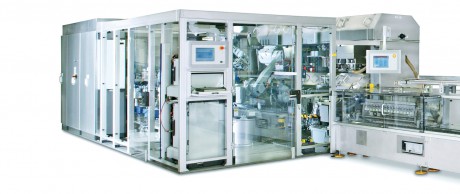

<3> High SPEED –TFS 80-4/-6/-8

Highest performance and reliability, intelligent controls for optimal process cycles and outstanding process safety have turned IWK into the market leader with automatic tube filling machines for medium and upper outputs.
The new tube filling line TFS 80-8 guarantees complete weight checking and control, thus reducing tube overfilling significantly. With a fill rate of 750 tubes per minute, the TFS 80-8 is faster than any other tube filling machine in the world.
A wide range of options and additional equipment such as IWKs tube feeding systems, and seamless integration of downstream equipment guarantees that today’s most sophisticated tube packaging demands are met.


Benefits:
* Short changeover times due to quick acting couplings
* Designed to meet GMP standards, simple operation and optimal accessibility
* Optimal process cycles and outstanding process safety
* Allowed time for the work processes regardless of the cycle time of the machine
* Compact construction
* Lesser and simplified setup operations, best flexibility and reliability
* Modular design concepts for diverse tube closing systems and add-on components

Technical Data:

Model	TFS 80-4	TFS 80-6	TFS 80-8
Max. output (tubes/min)	340	510	750
Working stations	18	18	24
Tube diameter (mm)	22-40	22-40	22-28
Total tube length (mm)	85-225	102-225	102-192
Dosing volume (ml)	2-200	2-220	2-100

APPLICATIONS
Products:
Tooth paste, adhesive cream for dentures, ointment, cream, gel, shampoo, hair-dye, adhesives, paint, silicon, ketchup, mayonnaise, mustard

Tube materials:
Alu-laminate, PE, PE-laminate, Koex

Tube forms:
Cylindrical (with EURO-hole, curved seal) oval, conical, dispenser (dispenser, inserting of pistons) Mascara pencils, cartouches, jars, tottles (capping)
